Description

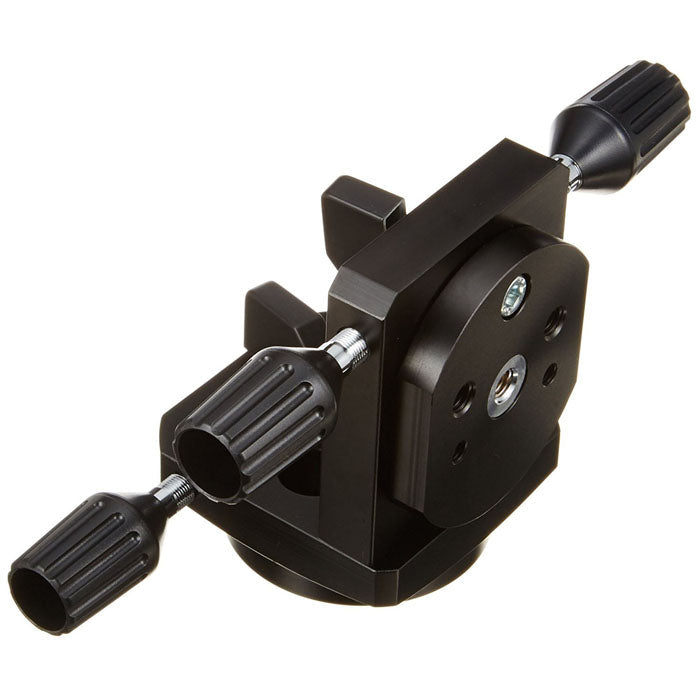

A low-profile mount for installing a guide scope
Guide Mount XY is designed for use in astrophotography and makes finding a guide star a sinch. A low profile mount used for installing a guide scope of 80mm or less. The altitude and azimuth fine adjustment screws allow you to adjust the orientation of a guide scope by +/-6.5 degrees in each direction. The Guide Mount XY can be installed on Vixen's Multi Plate DX (Item #2576), AXD Multi Plate (Item #36918), or Dovetail Mounting Block (Item #3810).
Specs
Loadable Optical Tube Size | Effective aperture under 80mm (recommended) |
Altitude/Azimuth Fine Adjustment | Tangent Screw with fine adjustment knobs |
Movable Range | +/- 6.5 degrees |
Plate Attachment Base | Hole for M8x2 (35mm space) |
Mount Base | Screw Hole for M6x2 (35mm space) and M8x2 (35mm space) |
Size | 100mm x 79mm x 160mm |
Weight | 750g |
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
