Features
- AX103S ED apochromat with triplet ED objective
- Fully coated triplet ED objective
- Optimized for full-frame photography
- Build-in field flattener lens for sharp images
- Very high sharpness and contrast
Description

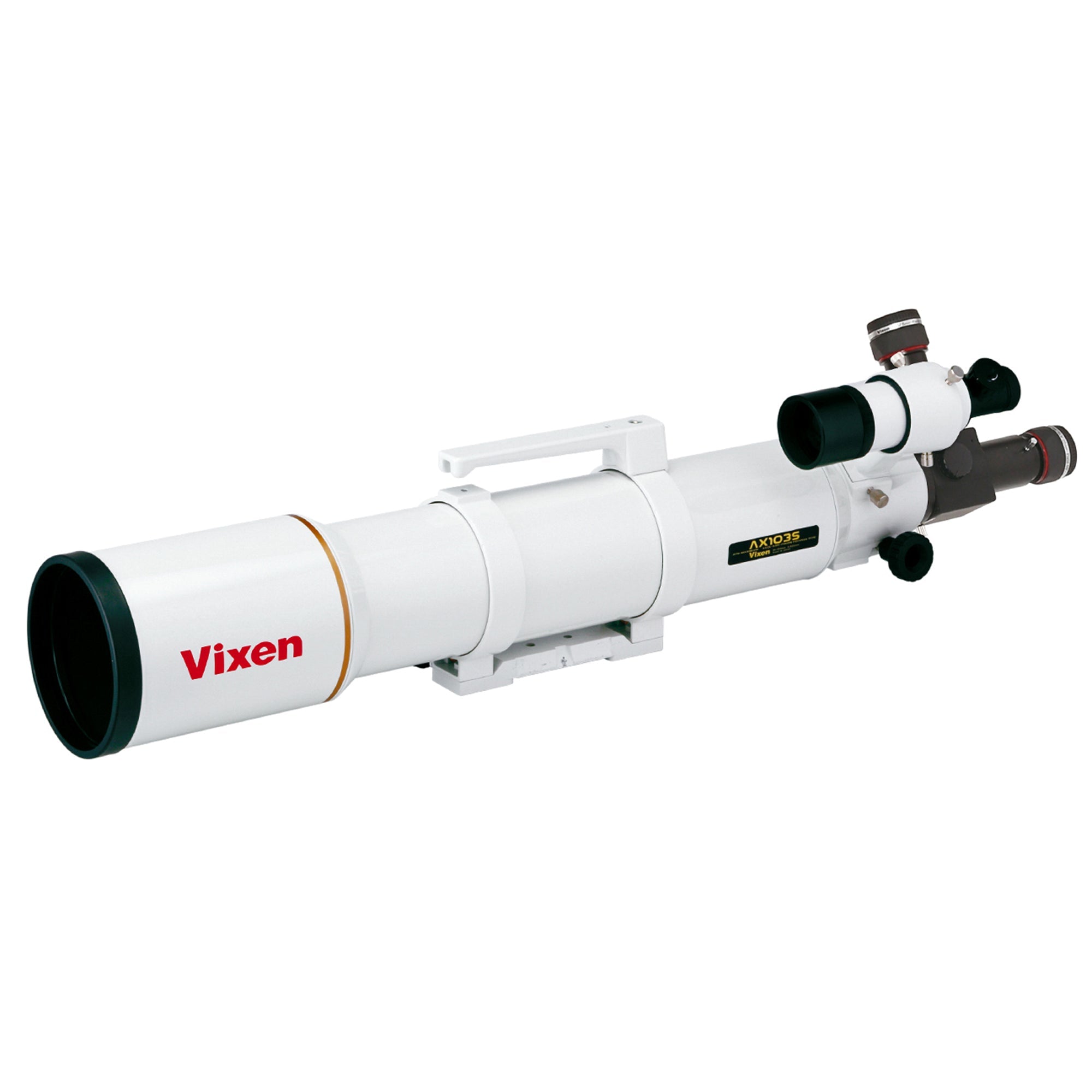

The AX103S is a top-of-the-range ED apochromat in the refractor series. It features a triplet ED object lens and a rear-mounted field-flattener lens. The f8.0 refractor contains a central ED lens in the objective and reduces chromatic aberration to an absolute minimum.

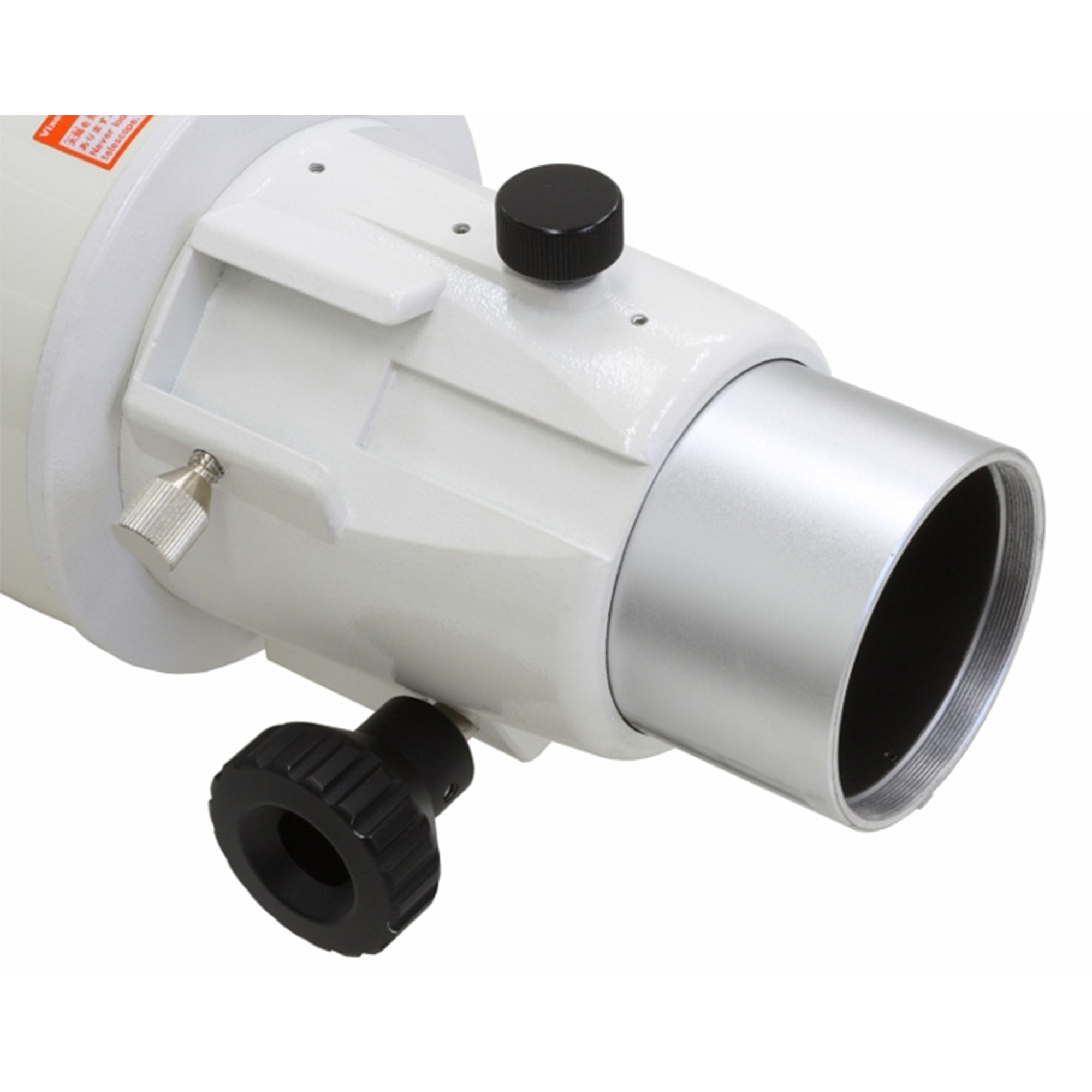

An optional focal reducer can reduce the aperture ratio to 1:5.6 in order to provide quicker results for astrophotographers. The built-in field flattener lens provides a sharp image across the entire field of view – an essential requirement in astrophotography. The 60 mm ring on the focuser allows you to attach a 2’’ eyepiece and a camera adapter.
The AX103S is specially designed for photography, but also offers stunning visual performance, especially for observing the moon and the planets. The AX 103S is corrected for full-frame photography and provides razor-sharp pictures right into the corners of the image field.
This telescope is guaranteed to provide a lifetime of outstanding performance!
What's Included
- Telescope
- Tube clamps and carry handle
- Illuminated 7x50 viewfinder telescope
- Folding mirror
Specs
Optical design | Apochomatic Refractor |
Mirror/Lens diam. | 103 mm |
Focal length and Aperture ratio | 825 mm f/8.0 |
ED Glass | Yes |
Angular resolution | 1.13 arc seconds |
Type of coating | Fully multi-coated |
Color of coating | Green |
Visual limiting magnitude | 11.8 (approx., mag) |
Material OTA | Aluminum |
Light-gathering power | 217x |
Finderscope | 7x50mm |
Dimensions | 687mm x 115mm |
Weight | 4.6 kg |
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
Manual
To download printable PDF manual Click Here
